O-ring Pusher seals use a sliding secondary seal and in this design the O-ring is pushed along the outside diameter of the equipment shaft or sleeve. The O-ring retains the sealed liquid and follows along the shaft to compensate for face wear.

TG8U


Product variants

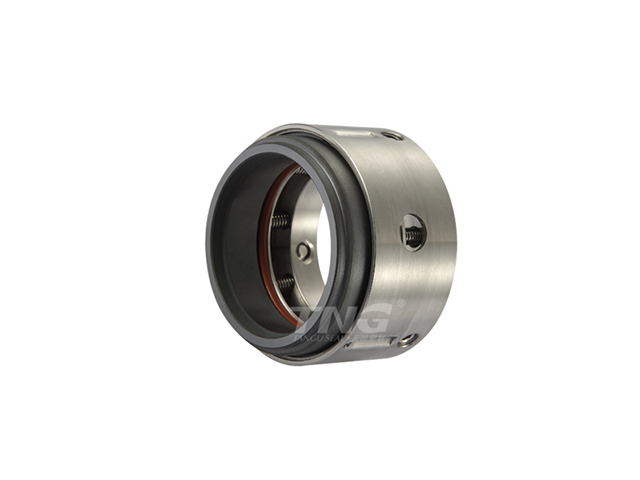

TG8U

John Crane Type8-1 Replacement

Mutil-Spring,O-ring pusher seal type 8U is the Rugged mechanical seals. Used in the different media conditions due to extend material options. It is widely used in the general industrial applications.

Share to:
Products Details
Features
  Mutil-Spring, Unbalanced, O-ring pusher.
  Rotary seat with a snap ring holds all parts together in a unitised design which eases installation and removal
  Torque transmission by set screws
  Conform with  EN12756 standard
Recommended Applications
  Chemical industry
  Industry pumps

  Process Pumps

  Oil refining and petrochemical industry

  Other Rotating Equipment

Operating range

Shaft diameter: d1=18...100mm(0.750'' ...4.000'')

Pressure:  p=0...2.0Mpa(290psi)
Temperature: t = -40 °C ...200 °C(-40°F to 392°F)
Sliding velocity: Vg≤25m/s(82ft/m)



Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

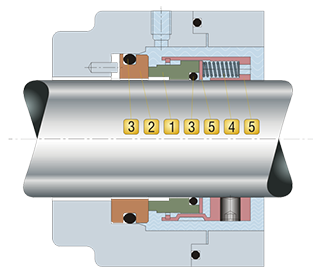

Product Structure
Combination Materials
 Rotary Face
    Silicon carbide (RBSIC) O
    Tungsten carbide W1
    Carbon graphite resin impregnated Ak
 Stationary Seat
    99% Aluminium Oxide B1
    Silicon carbide (RBSIC) O
    Tungsten carbide W1
 Auxiliary Seal
    Fluorocarbon-Rubber (Viton) V
    Ethylene-Propylene-Diene (EPDM) E
    PTFE Enwrap Viton M1
 Spring
    Stainless Steel (SUS304) F
    Stainless Steel (SUS316) G
 Metal Parts
    Stainless Steel (SUS304) F
    Stainless Steel (SUS316) G
Stationary Seat

Standard Stationary Seat: T6WG
T6WG equivalent to John Crane WG
