Features
ALLWEILER® Pump Types

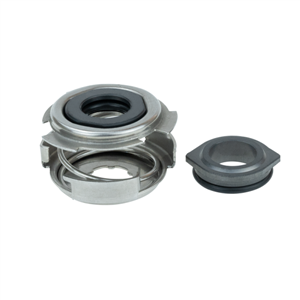

TNG® Seal Type AW-120H can be used in ALLWEILER® Pump L and LV series pump
For more information, please do not hesitate to contact our Technology department
Combination Materials
1. Rotary Face
Carbon graphite, resin impreg Ak
Carbon graphite,antimony impreg AD
Reaction Bonded Sic RBSIC O
Sintered Silicon Carbide SSlC O1
2. Stationary Seat
Reaction Bonded Sic RBSIC O
Sintered Silicon Carbide SSlC O1
3. Auxiliary Seal
EPDM E
FKM V
NBR P
4. Spring
GrNi-Steel (AlS1304) F
GrNiMo-Steel (AlS13 16) G
5. Metal Parts
GrNi-Steel (AlS1304) F
GrNiMo-Steel (AlS13 16) G
