Features
Reliable transmission due to special design in the drive band and drive notches.
Special balancing in the elastomer bellows. design,avaliable in high-pressure application
Single seal、balanced、Bi-directional
Good interchange ability, TG1U Dimensional data conform with US standard, TG1K conform with UK standard.
Available in metric and inch sizes
Recommended Applications
Water and waste water technology
Petroleum chemical industry
Industrial pumps。
Process pumps。
Other Rotating Equipment
Operating range
Shaft diameter: d1=16...75mm(0.625'' ...3.000'')
Pressure: p=0...1.7Mpa（246.5psi）
Temperature: t = -40 °C ...200 °C(-40°F to 392°F)
Sliding velocity: Vg≤13m/s（42.6ft/m）
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

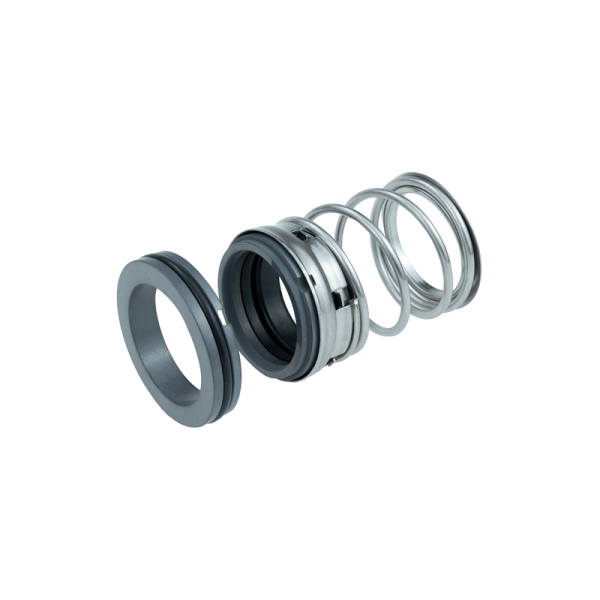

Product Structure
Combination Materials
1. Rotary Face
Carbon graphite resin impregnated Ak
Tungsten carbide W1
Silicon carbide (RBSIC) O
2. Stationary Seat
Aluminium oxide(Ceramic) B
Silicon carbide (RBSIC) O
Tungsten carbide W1
3. Auxiliary Seal
Nitrile-Butadiene-Rubber (NBR) P
Fluorocarbon-Rubber (Viton) V
Ethylene-Propylene-Diene (EPDM) E
4. Spring
Stainless Steel (SUS304) F
5. Metal Parts
Stainless Steel (SUS304) F
Stationary Seat
|
Standard Stationary Seat: T1NG,T1N
T1NG equivalent to John Crane NG
T1N equivalent to John Crane N
|
 |
|
Alternatives Stationary Seat: T6WG,T6W
T6WG equivalent to John Crane WG
T6W equivalent to John Crane W
|
 |
