O-ring Pusher seals use a sliding secondary seal and in this design the O-ring is pushed along the outside diameter of the equipment shaft or sleeve. The O-ring retains the sealed liquid and follows along the shaft to compensate for face wear.

TG120M


Product variants

TG120M

EagleBurgmann type M2N series Replacement

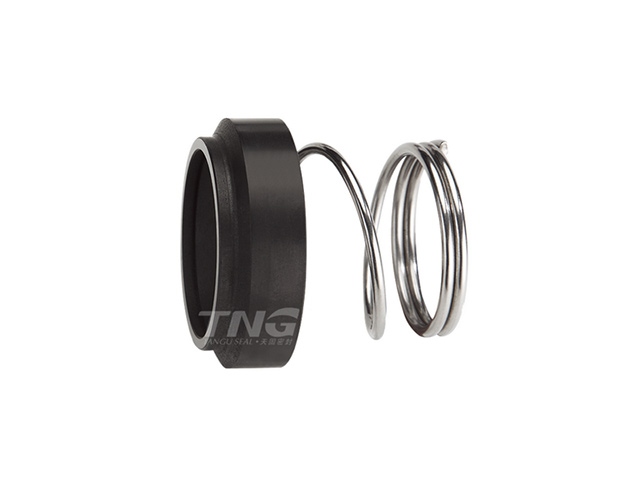

Type TG120M mechancal seal range feature a spring loaded solid carbon graphite or silicone carbide seal face. It is conical spring and O-ring pusher construction mechanical seals with economical price. it is widely used in basic applications such as circulating pumps for water and heating system.

Share to:
Products Details
Features
  Conical spring, unbalanced,O-ring pusher construction
  Torque transmission via conical spring,  independent    of direction of rotation.
  Solid carbon graphite or silicone carbide in rotary face
Recommended Applications
  Basic applications such as circulating pumps for water and heating system.
  Circulating pumps and centrifugal pumps
  Other Rotating Equipment.
Operating range

Shaft diameter: d1=10...38mm
Pressure: p=0...1.0Mpa(145psi)
Temperature: t = -20 °C ...180 °C(-4°F to 356°F)
Sliding velocity: Vg≤15m/s(49.2ft/m)


Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

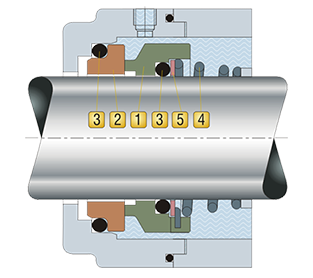

Product Structure
Combination Materials
 Rotary Face
    Carbon graphite resin impregnated Ak
    Silicon carbide (RBSIC) O
 Stationary Seat
    Silicon carbide (RBSIC) O
    Aluminium Oxide Ceramic
 Auxiliary Seal
    Nitrile-Butadiene-Rubber (NBR) P
    Fluorocarbon-Rubber (Viton) V
    Ethylene-Propylene-Diene (EPDM) E
 Spring
    Stainless Steel (SUS304) F
    Stainless Steel (SUS316) G
    Left rotation:L Right rotation:R
 Metal Parts
    Stainless Steel (SUS304) F
    Stainless Steel (SUS316) G
Stationary Seat


Standard Stationary SeatT3G6

T3G6 equivalent to Burgmann G6


Alternatives Stationary SeatT3G4   T1G60

T3G4 equivalent to Burgmann G4
T1G60 equivalent to Burgmann G60
