O-ring Pusher seals use a sliding secondary seal and in this design the O-ring is pushed along the outside diameter of the equipment shaft or sleeve. The O-ring retains the sealed liquid and follows along the shaft to compensate for face wear.
You are here: Home » Products > O-ring Pusher Mechanical Seals

TG58U


Product variants

TG58U

John Crane Type58U Replacement

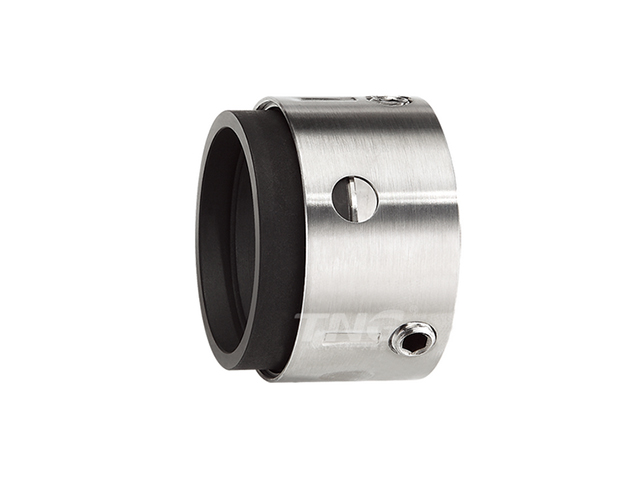

TNG type TG58U is the Rugged mechanical seals, with Mutil-Spring,O-ring pusher design. Used in the different media conditions due to extend material options . It is widely used in the general industrial applications.

Share to:
Products Details
Features
  Mutil-Spring, Unbalanced, O-ring pusher
  Rotary seat with a snap ring holds all parts together in a unitised design which eases installation and removal
  Torque transmission by set screws
  Conform with DIN24960 standard
Recommended Applications
  Chemical industry
  Industry pumps
  Process Pumps
  Oil refining and petrochemical industry
  Other Rotating Equipment
Operating range

Shaft diameter: d1=18...100 mm
Pressure: p=0...1.7Mpa（246.5psi）
Temperature: t = -40 °C ..+200 °C(-40°F to 392°)

Sliding velocity: Vg≤25m/s（82ft/m）



Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

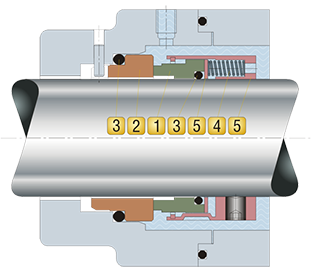

Product Structure
Combination Materials
 Rotary Face
    Silicon carbide (RBSIC) O
    Tungsten carbide W1
    Carbon graphite resin impregnated Ak
 Stationary Seat
    99% Aluminium Oxide B1
    Silicon carbide (RBSIC) O
    Tungsten carbide W1
 Elastomer
    Fluorocarbon-Rubber (Viton) V
    Ethylene-Propylene-Diene (EPDM) E
    PTFE Enwrap Viton M1
 Spring
    Stainless Steel (SUS304) F
    Stainless Steel (SUS316) G
 Metal Parts
    Stainless Steel (SUS304) F
    Stainless Steel (SUS316) G
Stationary Seat


Standard Stationary Seat:T7BP

T7BP equivalent to John Crane BP


Alternatives Stationary Seat:T3BO

T3BO equivalent to John Crane BO
