O-ring Pusher seals use a sliding secondary seal and in this design the O-ring is pushed along the outside diameter of the equipment shaft or sleeve. The O-ring retains the sealed liquid and follows along the shaft to compensate for face wear.
You are here: Home » Products > O-ring Pusher Mechanical Seals

TGJB104


Product variants

TGJB104

O-Ring pusher mechanical seals PTFE V-Ring pusher mechanical seals

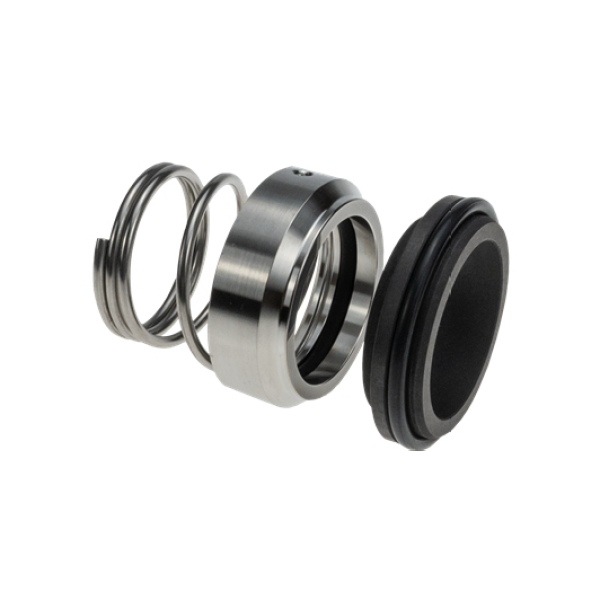

Type TGJB104 mechanical seals with O-Ring pusher construction and also available in PTFE V-Ring pusher construction. It has a wide range of combination material options can be used in general applications and corrosive fluid appliactions

Share to:
Products Details
Features
  O-Ring pusher construction，available in PTFE V-Ring pusher construction
  Transmission by Pin and groove，independent of direction of rotation .
  Single seal, unbalanced.
  Dimensional data conform with ISO3069 standard.
Recommended Applications
  Petrochemical industry and sewage treatment industry
  Sewage pumps, chemical pumps, screw pumps
  Other Rotating Equipment.
Operating range

Shaft diameter: d1=16...120mm
Pressure: p=0...0.8Mpa（116psi）
Temperature: t = -20 °C ...80 °C(-4°F to 176°F)
Sliding velocity:  Vg≤10m/s（32.8ft/m）



Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

Product Structure
Combination Materials
 Rotary Face
    Silicon carbide (RBSIC) O
    Tungsten carbide W1
 Stationary Seat
    Silicon carbide (RBSIC) O
    Carbon graphite resin impregnated Ak
    Tungsten carbide W1
 Auxiliary Seal
    Fluorocarbon-Rubber (Viton) V
    Ethylene-Propylene-Diene (EPDM) E
    PTFE T
 Spring
    Stainless Steel (SUS304) F
    Stainless Steel （SUS316) G
 Metal Parts
    Stainless Steel (SUS304) F
    Stainless Steel （SUS316) G
Stationary Seat



Standard Seat:  T4D






Alternatives Seat: T5D
