Features
Simple structure and easy installation
Single seal and single spring
Bi-directional
Recommended Applications
Water treatment
Small Centrifugal water pumps
Food industry
Other Rotating Equipment
Operating range
Shaft diameter: d1=12.....18mm
Pressure: p=0...0.4Mpa（58 psi）
Temperature: t = -20 °C .. 150 °C(-4°F to 302°F)
Sliding velocity: Vg≤3000r/m
Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

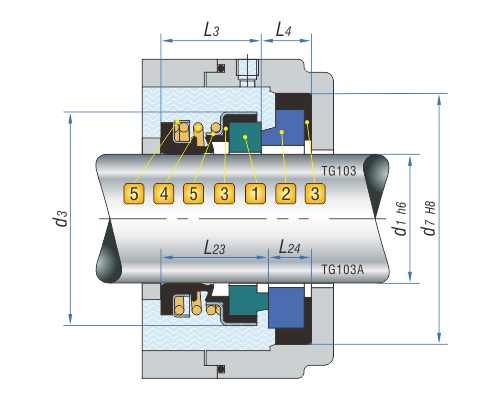

Product Structure
Combination Materials
1. Rotary Face
Carbon graphite resin impregnated Ak
Reaction Bonded Silicon carbide (RBSIC) O
Hot-Pressing Carbon Ac
2. Stationary Seat
Aluminium oxide(Ceramic) B
Reaction Bonded Silicon carbide (RBSIC) O
Tungsten carbide W1
3. Auxiliary Seal
Nitrile-Butadiene-Rubber (NBR) P
Fluorocarbon-Rubber (FKM) V
Ethylene-Propylene-Diene (EPDM) E
4. Spring
Stainless Steel (SUS304) F
5. Metal Parts
Stainless Steel (SUS304) F
